Vertical Glass Washer and Dryer Machine

Vertical Glass Washer and Dryer Machine

    Pacote: Wooden Cases Package and Container Transfer
    produtividade: 150 Sets Per Month
    marca: Jinan LIJIANG Glass
    transporte: Ocean,Land,Air,Express,Others
    Lugar de origem: Jinan City, Shandong Province, China
    Habilidade da fonte: 20 Sets Per Month
    Certificados : CE & ISO9000
    porta: Qingdao Port

Descrição do produto

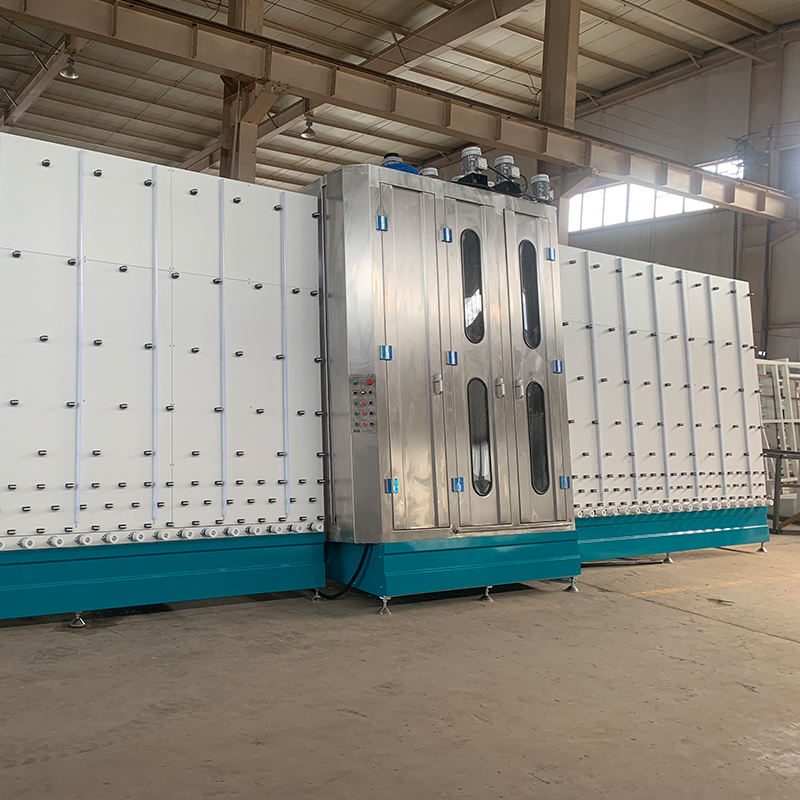

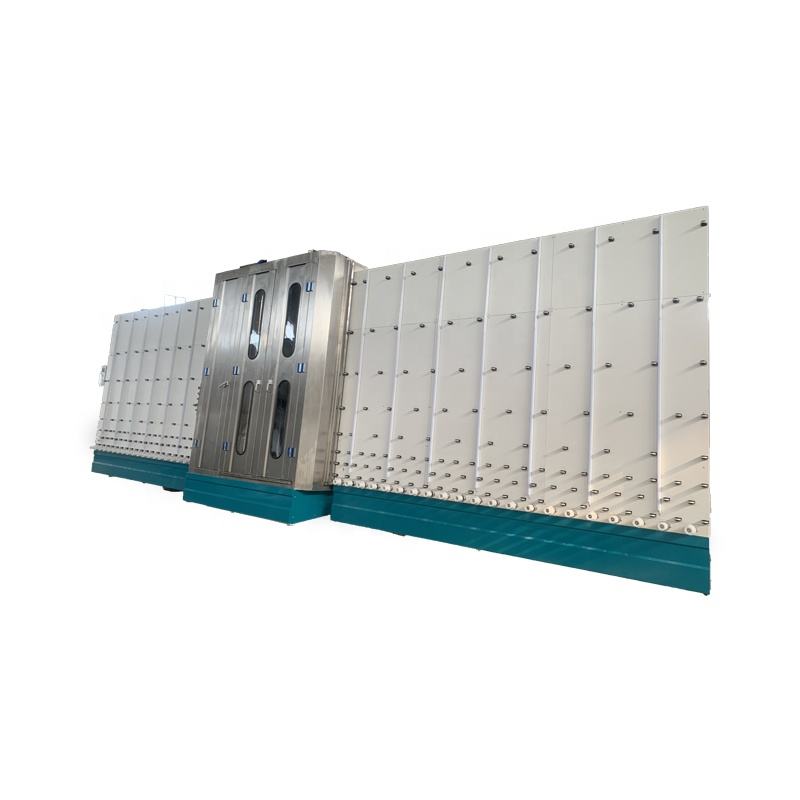

KTLQ-2500 Vertical Glass Washing Machine

KTLQ-2500 glass washing machine can wash max glass of 2500mm*3500mm, more large size and less size can be optional. - Self-Diagnosis system with touch screen on computer. - Stainless steel washer with 8 ( 6 ) brushes, soft brushes from MONFORTS of Germany, hard brushes automatically open when Low-E glass input. - Rotate speed of brush frequency control. (optional) - Stainless steel air knife is automatically adjustable according to glass thickness, Max thickness to 19mm. - High speed cleaning ( max 14m/min), Low noise ( max 70dB), high availability working. (25 second /unit) - Automatic detection of Low-E glass and alarm for coating in reverse. (optional) - Structure stepped and three-layer I.G. unit available. (optional) - Precision of plate press: ±0.3mm

Equipment Advantages



Advantages & Benefits

☆The glass washing machine could clean ordinary flat glass or coated glass with a thickness of 3~12mm; ☆The cleaning area uses 3 pairs of brushes or optional 4 pairs of brushes (or imported soft brushes, coating or LOE special), two or four water cleaning; ☆The machine adopts an inclined vertical structure, the flat glass is placed on the conveyor roller, passes through the feeding section, cleaning and drying section, and reaching the discharging section to complete the glass cleaning task; ☆The cleaning area and the water tank are made of stainless steel and corrosion-resistant materials; the inclined wind knife with strong wind can dry the glass surface; ☆The discharge section is equipped with inspection lamps to check the cleaning quality of the glass. The machine is easy to operate, and the operation buttons are concentrated on the operating table.

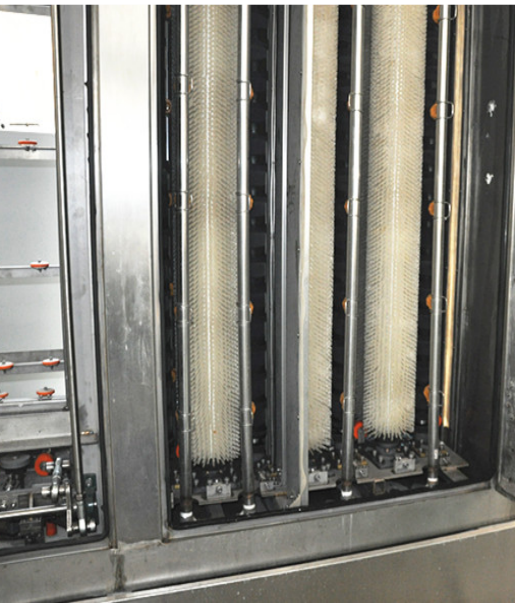

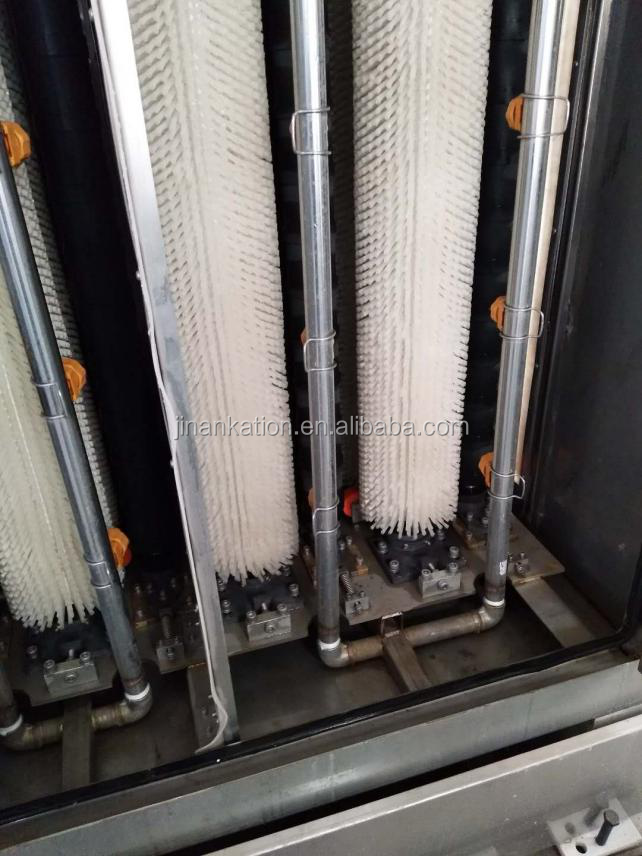

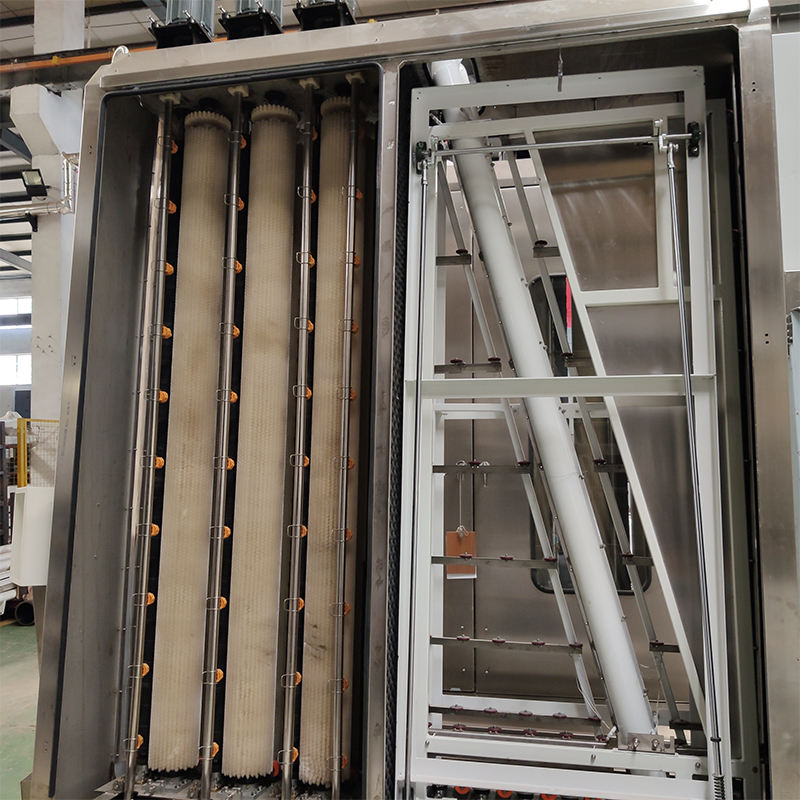

Configuration of three pairs of brushes

Six high temperature resistant wire brushes with diameter of 180mm + four sprays, the glass is cleaned and the speed is fast (10-12m per minute). The first brush is equipped with two bristles and is lifted by a cylinder.

Water rust and corrosion resistant

The parts and screws in the cleaning box that are in contact with water are made of stainless steel, copper, waterproof aluminum, nylon and other materials. They will not rust after long-term use and are easy to maintain.

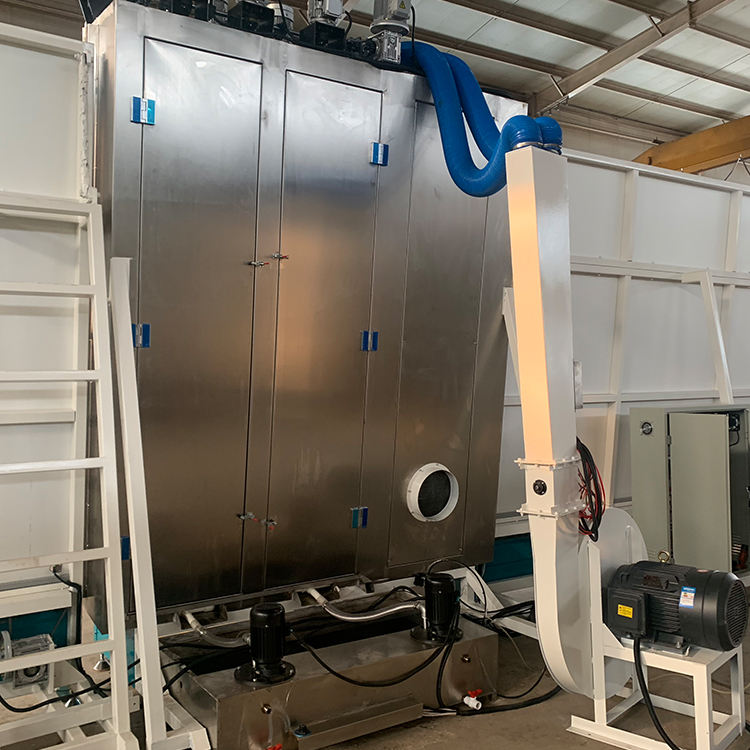

High efficiency air knives

Two pairs of stainless steel air knives are equipped with high wind power and good drying effect, with heating system. The unique circulating windshield drying system is energy-saving and low-noise (the wind temperature can reach 40 degrees without heating in winter).

Stainless steel structure

The air-drying box glass support frame is uniformly welded by high-strength stainless steel, and the whole washing parts of glass washing and drying equipment will be used for a long time without rust and will not cause secondary glass pollution.
Main Technical Parameter

Jinan LIJIANG Vertical Glass Washing Machine Specifications.

Type: KTLQ-2000 Vertical Glass Washing Machine

Application: Flat Glass Laminated Glass Washing and Drying Control Sytstem: PLC Control Adopts energy-saving intermittent automatic working system, the brushes, water pumps, and fans start automatically, saving energy and electricity. Three brushes and three showers are used to ensure the cleaning effect. All cleaning sections are made of high-quality stainless steel, equipped with coarse and fine two-pole filtration systems OEM/ODM:Yes CKD/SKD Cooperation:Yes Regional Exclusive Agent: Yes

Type: JLLQ-2500 Vertical Glass Washing Machine

Application: Flat Glass Laminated Glass Washing and Drying Control Sytstem: PLC Control Adopts energy-saving intermittent automatic working system, the brushes, water pumps, and fans start automatically, saving energy and electricity. Three brushes and three showers are used to ensure the cleaning effect. All cleaning sections are made of high-quality stainless steel, equipped with coarse and fine two-pole filtration systems OEM/ODM:Yes CKD/SKD Cooperation:Yes Regional Exclusive Agent: Yes


Type: KTLQ-2000 Vertical Glass Washing Machine
Type: KTLQ-2500 Vertical Glass Washing Machine
Max glass size: 2000mm*2500mm
Max glass size: 2000mm*2500mm
Min glass size: 2500mm*3000mm
Min glass size: 2500mm*3000mm
Working direction facing the equipment
Working direction facing the equipment
Washing speed: 2-10m/min
Washing speed: 2-10m/min
Glass thickness: 3-15 mm
Glass thickness: 3-15 mm
Insulating glass thickness: ≤40 mm
Insulating glass thickness: ≤40 mm
Water supply: 0.5 tons/day of circulating water, conductivity ≤40μS
Water supply: 0.5 tons/day of circulating water, conductivity ≤40μS
Washing speed: 2-10m/min
Washing speed: 2-10m/min
Working height: 580mm
Working height: 580mm
Power: 3P 380V 50Hz
Power: 3P 380V 50Hz
Ambient temperature: 10°C-30°C, according to DIN 40040
Ambient temperature: 10°C-30°C, according to DIN 40040
Relative air humidity: ≤ 75 %, according to DIN 40040
Relative air humidity: ≤ 75 %, according to DIN 40040

Other Insulating Glass Equipment of our company:

1.Insulating Glass Production Line
2.Spacer Bending Machine
3.Desiccant Filling Machine
4.Butyl Extruder Machine
5.Insulating Glass Sealing Robot
6.Glass Washing Machine
